How to Install Spark Plugs Correctly

Using a Torque Wrench

Diesel Electric Spark Plug Flat Seat
Diesel Electric Spark Plug Canonical Seat
Correct installation of spark plugs with torque wrench – flat seat
Correct installation of spark plugs with torque wrench – conical seat
Tightening torques (N . m)
10 N . m ~ 1kpm
In cast iron In light alloy
M 10×1 10 … 15 10 … 15
M 12×1.25 15 … 25 15 … 25
M 14×1.25 20 … 40 20 … 30
M 18×1.5 30 … 45 30 … 35
In cast iron In light alloy
2M 14×1.25 215 … 25 210 … 20
2M 18×1.5 220 … 30 215 … 23

Without Using a Torque Wrench

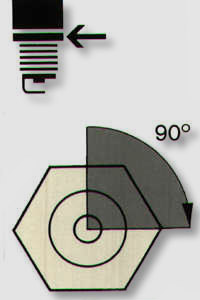

Screw in spark plug by hand until it is seated in the cylinder head. New spark plugs with flat seats are then screwed in by a further approx. 90º using the spark plug wrench, and spark plugs with conical seat as well as used spark plugs with flat seats are screwed in by a further approx. 15º.

Spark Plug torque flat seat
Spark Plug torque Canonical seat
Correct installation of spark plugs without torque wrench – flat seat
Correct installation of spark plugs without torque wrench – conical seat

With Bosch spark plugs, no greasing of the thread is necessary – the nickel-plated thread prevents corrosion and sticking of the spark plug in the aluminium cylinder head. This means particularly simple and time-saving installation.

Foglamps – a wide beam
Driving lamps – a long, narrow beam
Foglamps – a wide beam penetrating below the fog
Driving lamps – a long, narrow beam which allows you to see further

Used in addition to standard headlamps, driving lamps improve safety and reducing fatigue; by extending the range of the main beam, they allow improved vision – increasing reaction time and helping you concentrate better. Bosch H4 halogen driving lamps will give you 400 – 600 metres of floodlight – or talk to us about converting your existing headlamps to H4 with our easy-to-install conversion kit.

Foglamps should be taken just as seriously as seatbelts – statistics show that fog is a major cause of accidents; even in locations where fog is not so frequently encountered, Bosch foglamps with halogen bulbs should also be part of your safety equipment – because where drivers are not accustomed to it, fog accounts for significant jumps in the accident rate.

Mounted about 40cm above the road, Bosch halogen foglamps allow you to see and be seen and throw out a wide beam which penetrates beneath the fog (where it is thinnest).

Foggy conditions – ordinary headlamps
Foggy conditions – Bosch halogen foglamps
Foggy conditions – ordinary headlamps
Foggy conditions – Bosch halogen foglamps

The special lens aims the light to the sides in such a manner that you can clearly see the edge of the road, crash barriers and centre line at all times. It’s as though a broad guiding beam of light were steering you safely through the fog so that you can keep your correct position on the road even in the thickest pea soup and be seen by the oncoming traffic.

  • Driving and fog lamps – mounting positions.
  • Driving lamps are most effective if mounted as high as possible.

Note on legal requirements for mounting backup and fog warning lamps:

Observe the legal requirements for the mounting and electrical connection of backup and fog warning lamps. Detailed instructions are enclosed with each pack.
